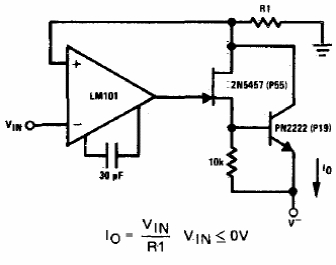

This circuit is from a manual of linear integrated circuits of the 80s. The operational is of the time, but the configuration can be applied to modern equivalents. The power supply must be symmetrical.
