TTL Clock with Active Cycle (CB5997E)

Details
Written by: Newton C. Braga

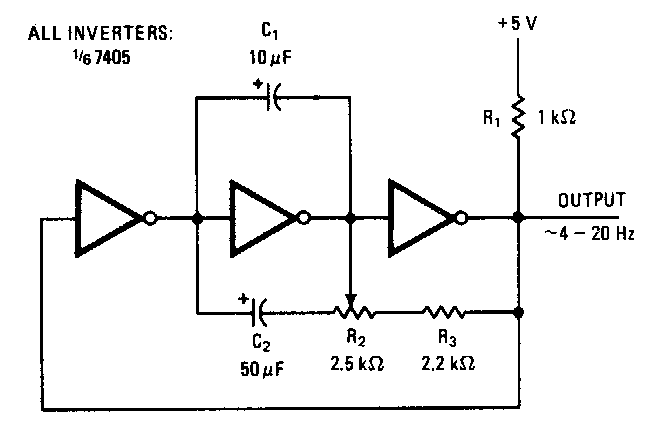

     This 50% active cycle TTL clock generates signals from 4 to 20 Hz. Its power must be supplied with 5 V and other frequencies can be generated with capacitor replacement.




| Clique na imagem para ampliar |
