VHF Modulator (CB5365E)

Details: Written by: Newton C. Braga

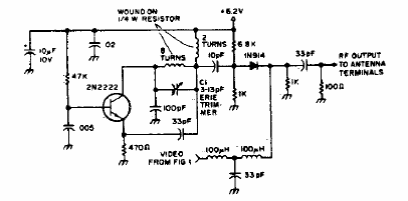

This circuit is from old American documentation, but the transistor used is still very common today. The circuit is intended for transmission of analog TV signals. The coils determine the transmission frequency.
