Positive front differentiator (CB5346E)

Details: Written by: Newton C. Braga

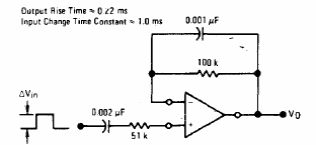

This circuit for the positive front of a rectangular signal was found in an old documentation, but applies to any operational amplifier. The power supply must be symmetrical.
