Engine Emission Analyzer (CB6040E)

Details
Written by: Newton C. Braga

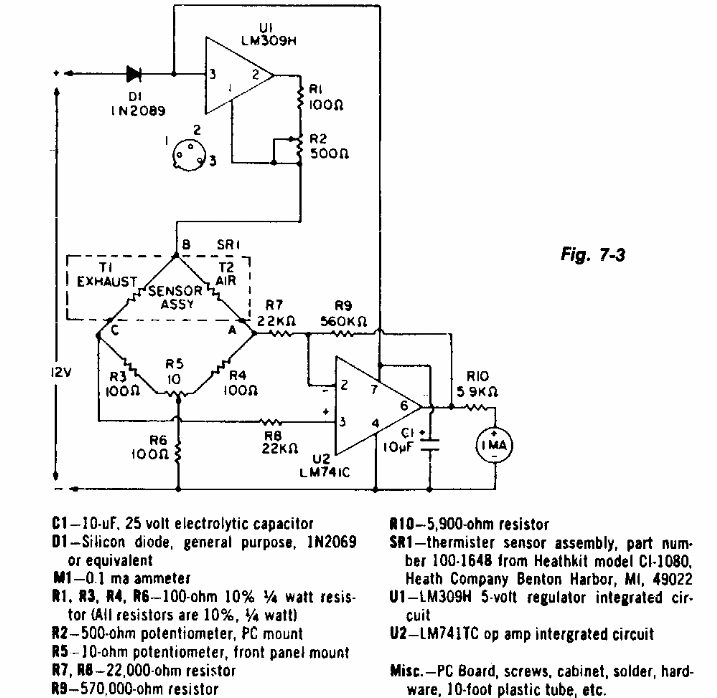

     This circuit was found in an American 1980s documentation. It analyzes the exhaust gas of a vehicle using a special sensor. The indicator is a milliamperimeter.
