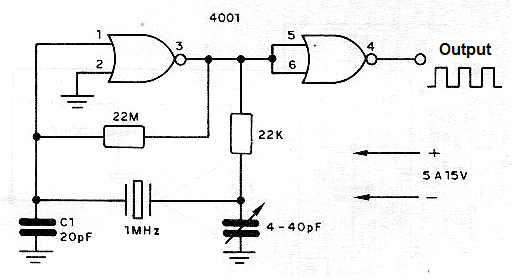

This configuration using a CMOS IC produces a 1 MHz signal. The circuit can be used as clock in many applications using digital Ics. The circuit can be powered from 5 to 12 V source and current drain is very low.
1 MHz XTAL Oscillator (CB226E)
- Details
- Written by: Newton C. Braga
