This circuit can generate signals in the range from 1 to 20 kHz, depending on the crystal. The circuit is from an 80's American documentation, but is current by the transistor used. Capacitors must be ceramic.

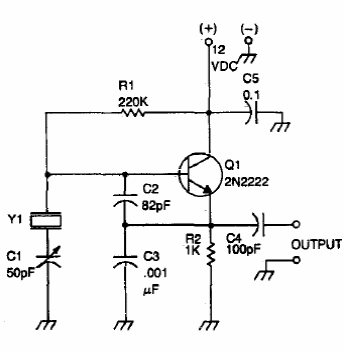

20 MHz Colpitts Oscillator (CB5122E)
- Details
- Written by: Newton C. Braga
