Headlamp timer 2 (CB6050E)

Details: Written by: Newton C. Braga

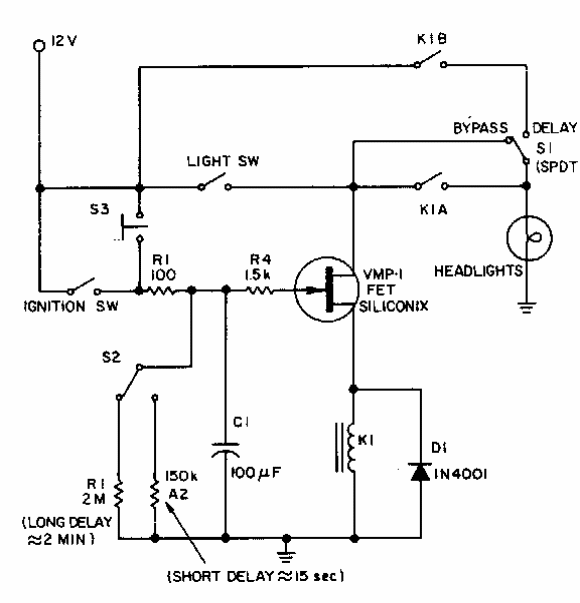

Found in an Electronic Design this circuit controls a headlamp by triggering a time determined by the selection of two resistors. The circuit is powered by the car battery.
