Crowbar (CB6083E)

Details
Written by: Newton C. Braga

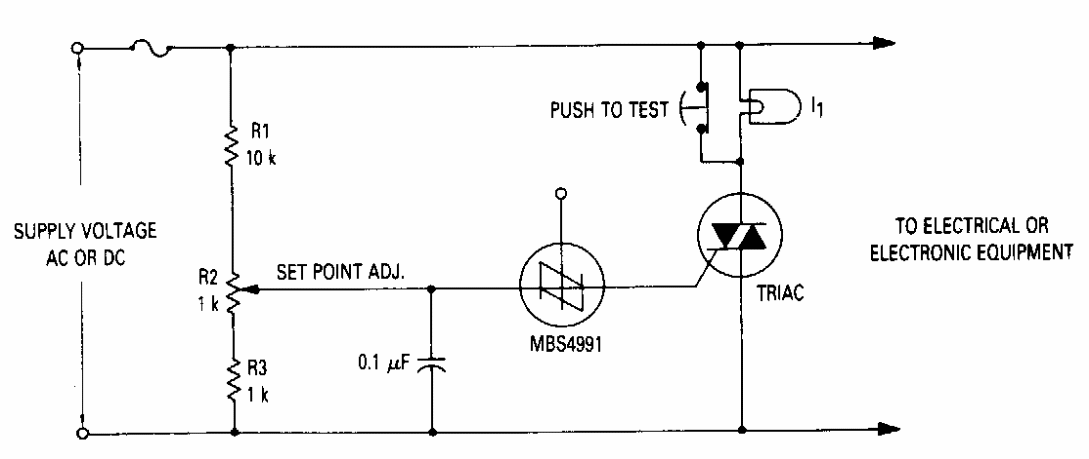

    This circuit is from a 1980s Motorola documentation. The circuit can be set to fire from 60 to 120 V DC or from 42 to 84 V AC. The circuit has a forehead button that activates an indicator lamp.
