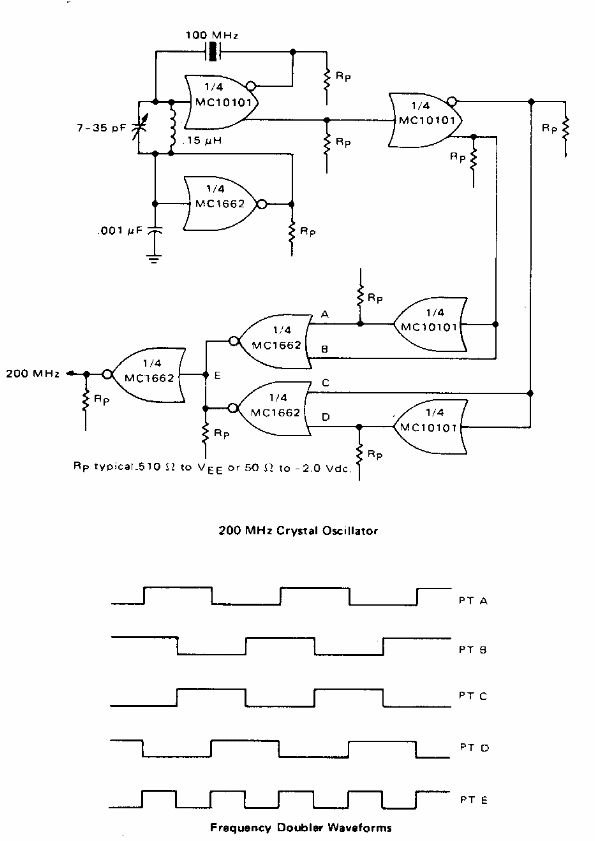

This 80's Motorola circuit can generate 100 MHz signals, but they can reach 200 MHz with the doubling circuit. The waveforms of the signals are given next to the diagram.
This 80's Motorola circuit can generate 100 MHz signals, but they can reach 200 MHz with the doubling circuit. The waveforms of the signals are given next to the diagram.
