Phone Power Monitor (CB5240E)

Details
Written by: Newton C. Braga

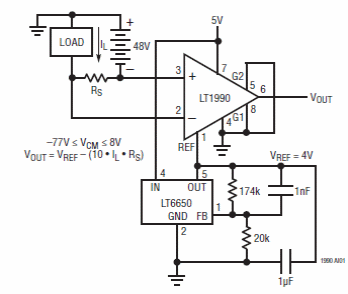

    This circuit was found in a 2005 Linear Technology application manual. The circuit is for 48 V powered telephones based on the company's own LT990 and LT6650.
