Solenoid Current Monitor (CB5399E)

Details
Written by: Newton C. Braga

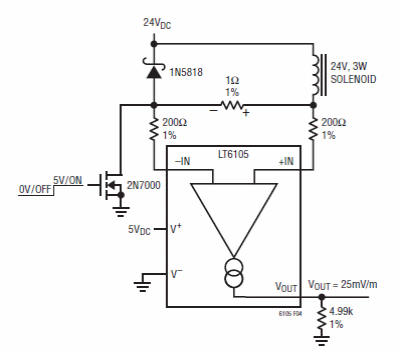

     This circuit uses the Linear Technology LT6505 and was found in a 2005 manual. The circuit is for 24 V x 3 W solenoids providing 25 mV per mA output. The circuit is on the low side of the solenoid.
