Remote Turn On (CB5944E)

Details
Written by: Newton C. Braga

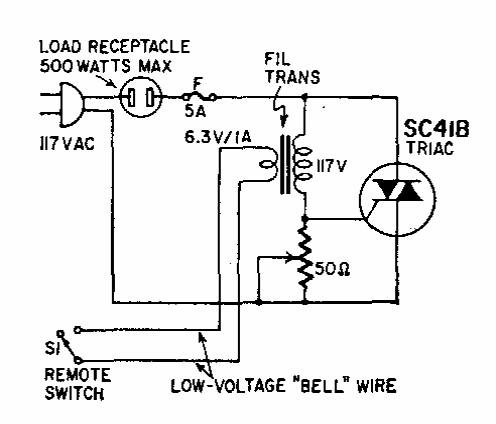

     This circuit, which appears from other sources in this section, allows you to control a load through an isolated low voltage line. The circuit was found in a 1980s American documentation
