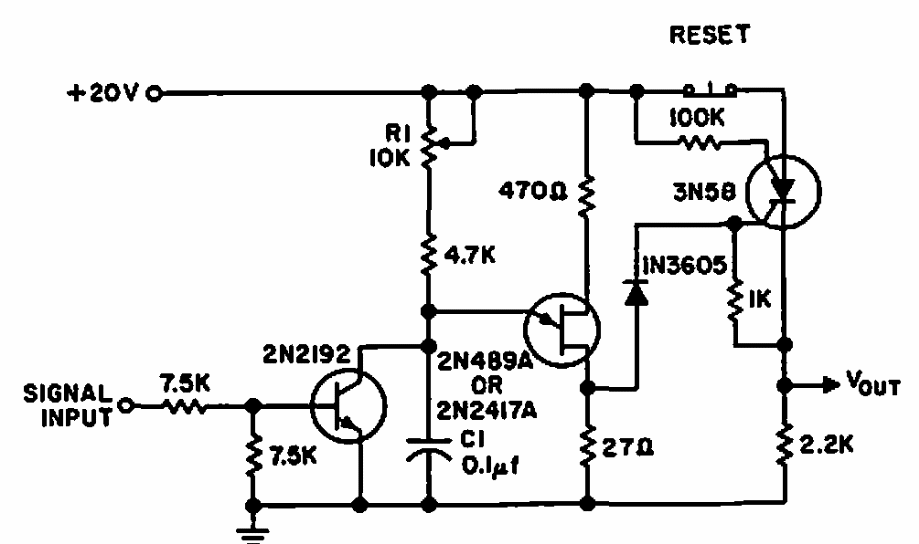

Signal Drop Detector (CB6117E)

Details: Written by: Newton C. Braga

This circuit was found in an 80's General Electric documentation. The circuit uses uncommon components today like the PUT. Unijunction admits equivalent.

| Clique na imagem para ampliar |
