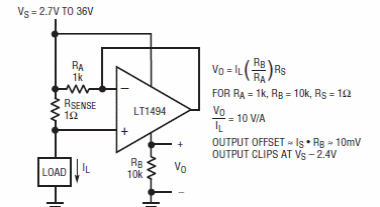

This circuit was obtained from a 2005 Linear Technology manual. The circuit is self-powered and can function as a shield. Next to the diagram the formula for calculating the used components.
High Side Sensor LT1494 (CB5219E)
