Ohm to volt converter (CB5102E)

Details: Written by: Newton C. Braga

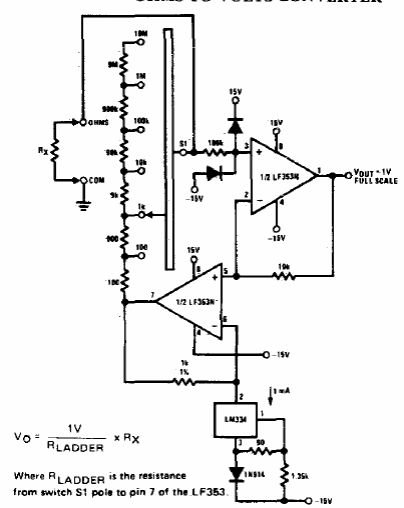

We found this circuit in an American 1980s documentation. The operational ones used are not common today, but can be used equivalents. In the circuit the formula for calculating the components.
