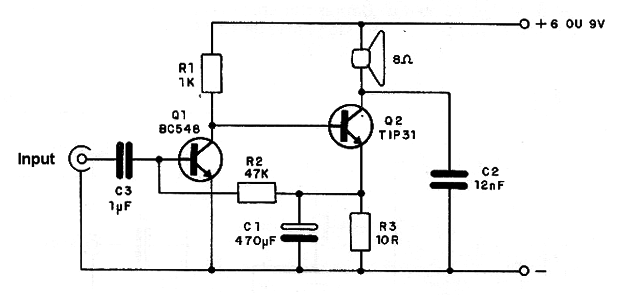

This simple stage can operate with low frequency signals (audio), driving a small lodspeaker. Power output is about 500 mW. The circuit can be used as audio stage in experimental receivers, intercoms and other applications. Q2 must be mounted on a heatsink ig the supply is 9 V.
