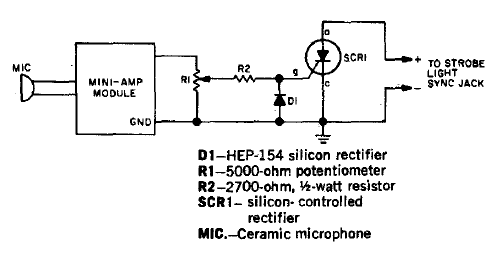

This circuit is from an old American documentation. In it we have a simple way to fire an SCR from a sound beep. The amplifier is low power, 1 W max.
