4 A Charger (CB6059E)

Details
Written by: Newton C. Braga

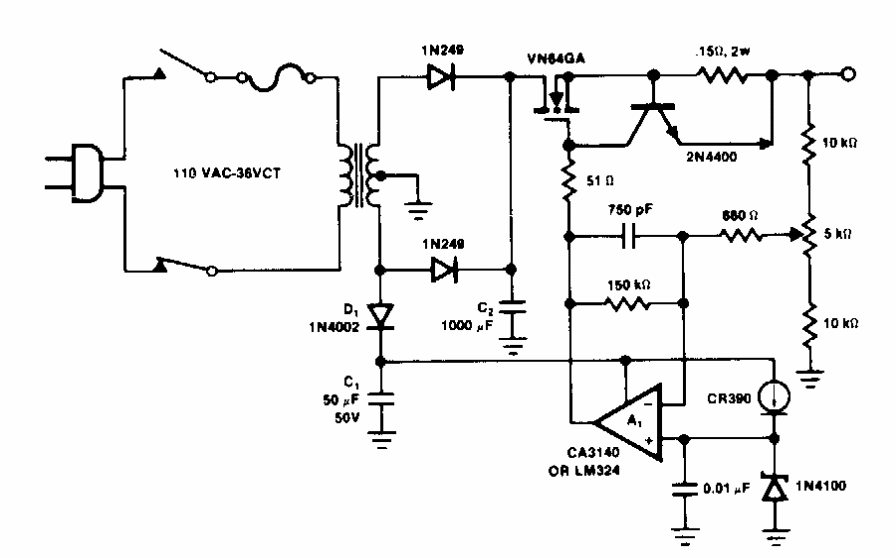

     The circuit is from 80s Siliconix documentation. The integrated circuit is from the company and is not common today. It can be used operational equivalent more common in our times.
