Sound Level Monitor (CB5330E)

Details: Written by: Newton C. Braga

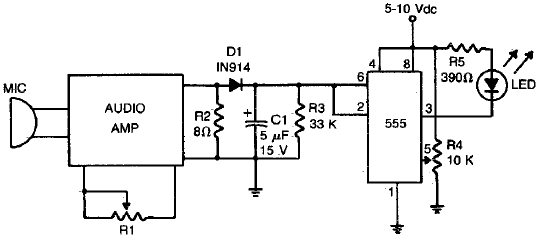

This circuit monitors the output level of an amplifier. The circuit is set to R4 and can be powered by voltages from 5 to 10 V. R1 is the volume control of the monitored amplifier.
