RF Voltmeter (CB5332E)

Details: Written by: Newton C. Braga

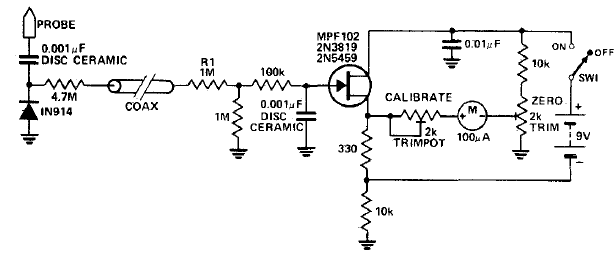

We found this circuit in an American publication from the 1990s. Any FET can be used. The circuit operates at frequencies up to approximately 200 MHz. Adjustments are made by two trimpots.
