Temperature Control (CB6012E)

Details
Written by: Newton C. Braga

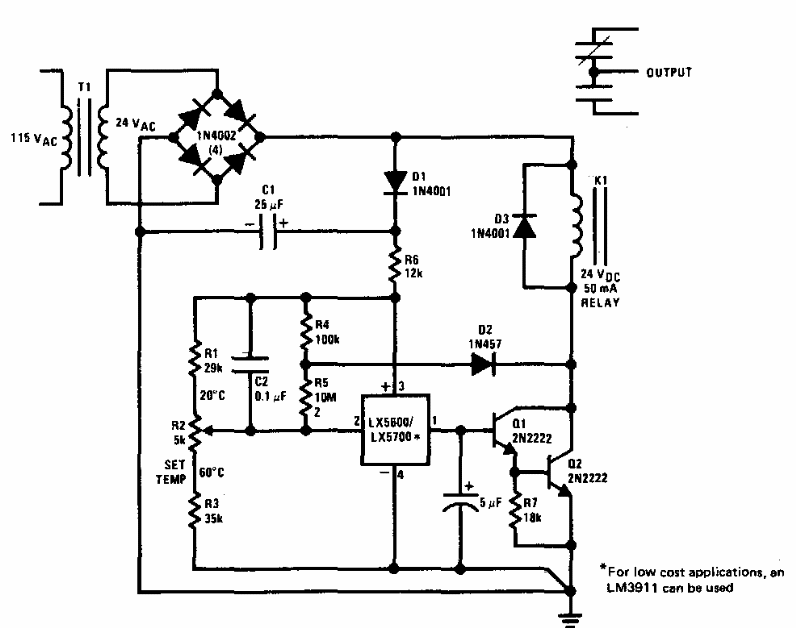

     This circuit triggers a relay when the set temperature is reached. The circuit is from an old documentation. The relay may be equivalent according to the transformer secondary voltage.
