Dimmer with Triac (CB6851E)

Details
Written by: Newton C. Braga

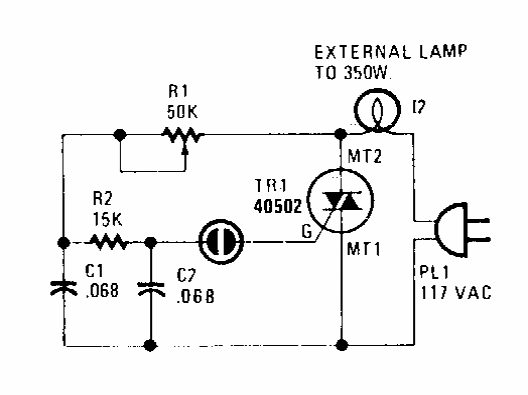

     This traditional version of a double time constant dimmer using triac is from the 90s documentation. With the used triac the maximum power is 350 W.
