Balance Indicator (CB6004E)

Details
Written by: Newton C. Braga

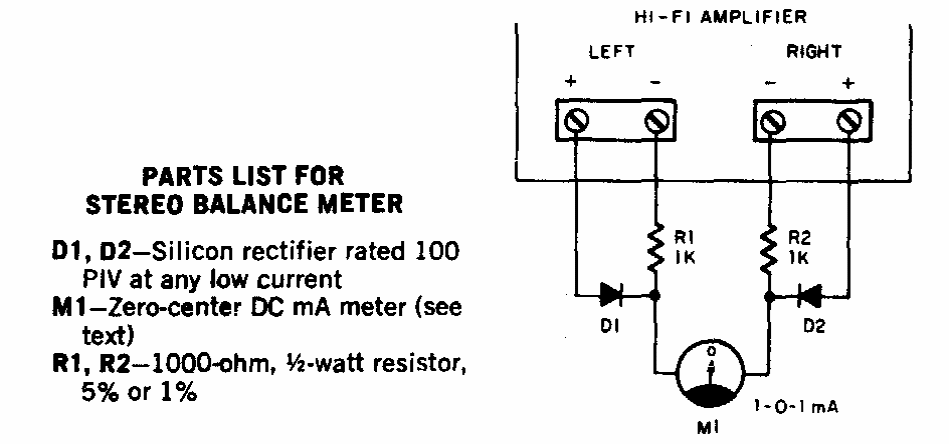

    This circuit allows you to adjust the balance between channels of a stereo amplifier. The circuit makes use of an analog indicator with zero in the center of the scale.




| Clique na imagem para ampliar |
