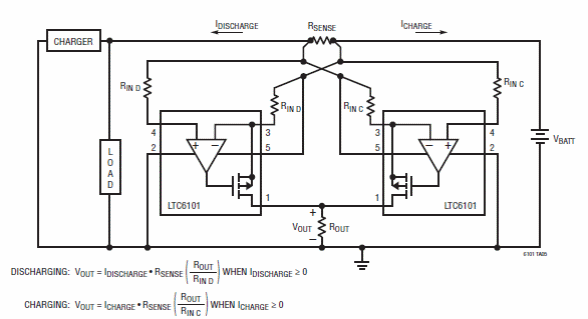

This circuit was found in a 2005 Linear Technology manual. It senses the two-way current, providing the output with an absolute current voltage. The formulas next to the diagram allow the calculation of the components.
Bidirectional Current Sensor (CB5257E)
- Details
- Written by: Newton C. Braga
