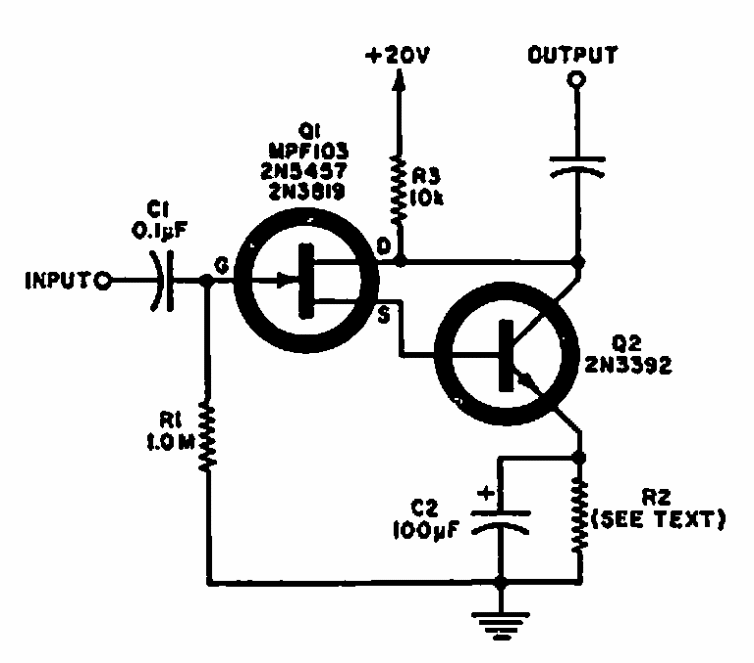

This input stage has unit gain but a high input impedance and low output impedance. The circuit is from 1969 and the transistors admit equivalents. The band pass is from 10 to 10,000 Hz. R2 can be from 60 to 120 ohm.
