Capacitance to voltage converter (CB6075E)

Details: Written by: Newton C. Braga

Capacitance to voltage converter (CB6075E)

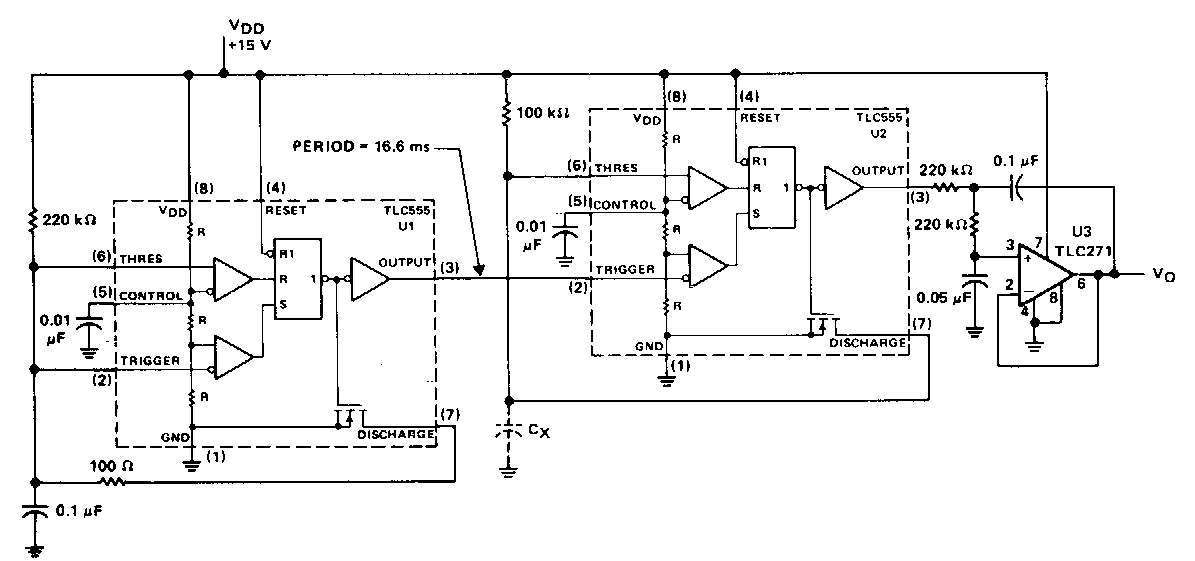

This Texas Instruments circuit can be used on a capacitance meter using a frequency meter. Components are common and accuracy will depend on calibration.
