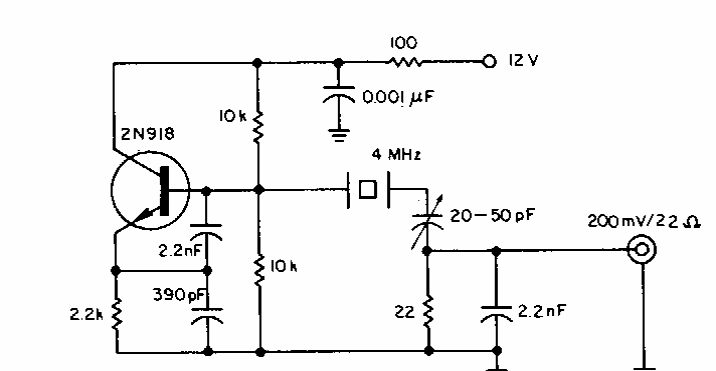

This circuit was found in an 80's Electronic Design. The frequency depends on the crystal and the passing range is limited to 100 Hz. High frequency suppression is -60 dB on the third harmonic.




| Clique na imagem para ampliar |
