48V Current Sensor (CB5237E)

Details: Written by: Newton C. Braga

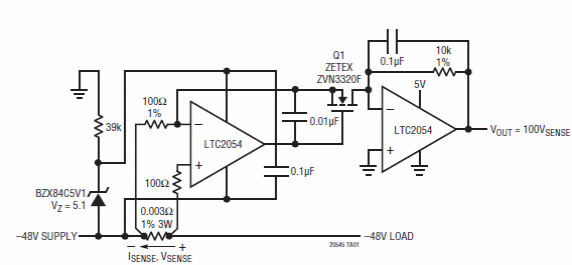

This Low Side sensor was found in a 2005 Linear Technology documentation. The circuit uses two LT2054 and can be powered with 5 V. The circuit acts as a shield.
