Charge and Discharge Current Sensor (CB5256E)

Details: Written by: Newton C. Braga

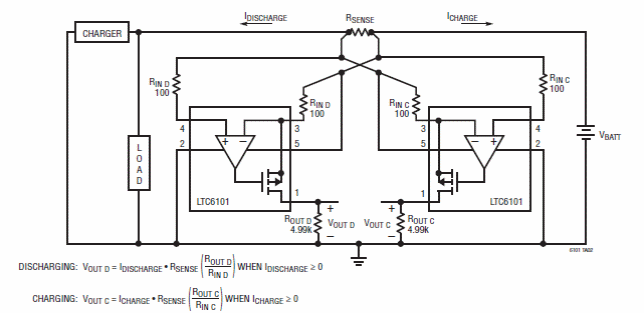

This 2005 Linear Technology circuit has separate outputs for monitoring the charge and discharge of a battery. Formulas next to the diagram let you calculate the components.

| Clique na imagem para ampliar |
