RMS Current Meter (CB5386E)

Details: Written by: Newton C. Braga

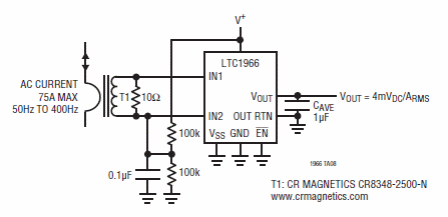

This circuit makes use of a commercial type current transformer. The circuit is from a 2005 Linear Technology manual providing 4 mV DC output for each amp rms.
