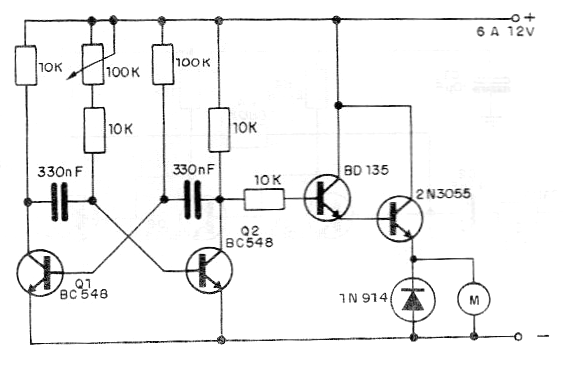

This speed control for small DC motors can operate from 6 to 12 V sources. The motors can drain currents up to 1 A. The transistor can be replaced by equivalents and must be mounted on a heatsink. The 330 nF capacitor can be altered to achieve the best performance.
