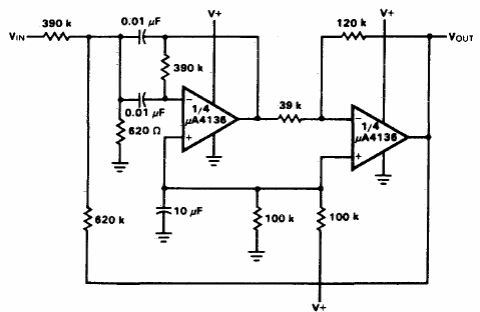

Band pass active filter 1 kHz (CB5196E)

Details
Written by: Newton C. Braga



     The operational amplifier using this 80's circuit is a double 741 of the time. The circuit may be changed to operate in other frequency ranges. The power supply need not be symmetrical.
