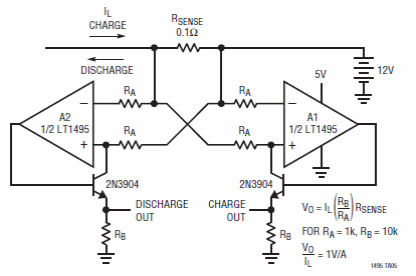

Supplied in a 2005 Linear Technology Application Manual, this circuit monitors the charge and discharge of a battery. The formulas for calculating the components are given next to the diagram. The circuit applies to 12V batteries.
