Current Sensor 0 to 33 A (CB5385E)

Details
Written by: Newton C. Braga

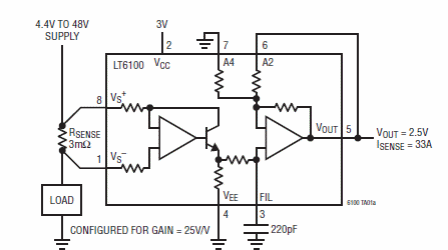

    This filtered High Side sensor circuit was found in a 2005 Linear Technology application manual. The circuit can be used on 4.4 to 40 V circuits and the sensor resistor is only 3 mOhm.
