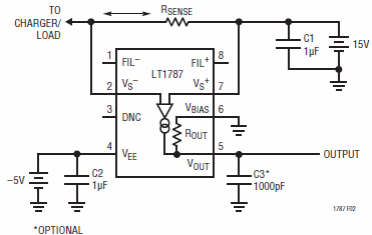

This circuit was found in a 2005 Linear Technology application manual. The circuit is based on the LT787 being used to monitor the charge and discharge of a battery. The power to the IC is at -5 V.
Bidirectional Current Monitor (CB5265E)
- Details
- Written by: Newton C. Braga
