Fast Power Supply Protection (CB5886E)

Details
Written by: Newton C. Braga

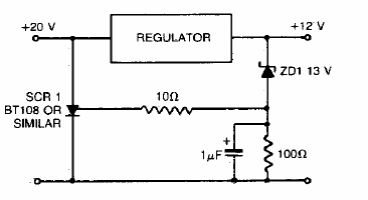

    This protection circuit for sources up to 20 V was found in a 1980s documentation. The circuit triggers when the voltage exceeds 13 V causing the protective fuse to blow.
