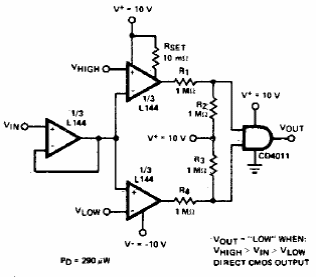

This two-input limit detector was found in an American 1980s documentation. The circuit can be implemented with modern equivalent operational amplifiers.
![](/images/stories/cir/223612362023_144336_0001.gif)
This two-input limit detector was found in an American 1980s documentation. The circuit can be implemented with modern equivalent operational amplifiers.
