Low Side Current Sensor LT2050HV (CB5235E)

Details: Written by: Newton C. Braga

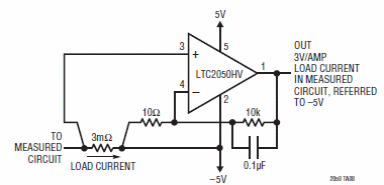

This circuit is from the 2005 Linear Technology Application Manual. The circuit must be powered by 5 V symmetrical source and has a common point with the sensed circuit.
