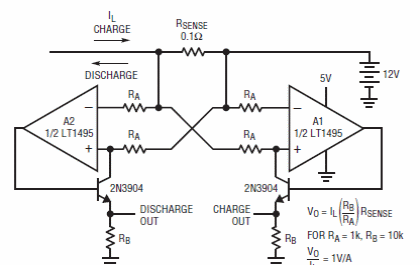

This circuit was found in a 2005 Linear Technology manual. The circuit monitors 12 V batteries in both under charging and discharging. The circuit can operate on batteries up to 36 V and must be powered with 5 V.
![](/images/stories/cir/223812382023_150738_0001.gif)
This circuit was found in a 2005 Linear Technology manual. The circuit monitors 12 V batteries in both under charging and discharging. The circuit can operate on batteries up to 36 V and must be powered with 5 V.
