Schottky Power Reversal Protection (CB5897E)
- Details
- Written by: Newton C. Braga

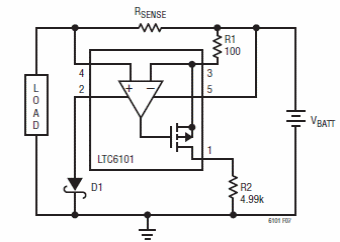

This circuit prevents damage by accidentally reversing the power supply polarity. The circuit is from a 2005 Linear Technology Application Manual based on the LTC6101.
