Programmed Frequency Divider (CB25199E)

Details
Written by: Newton C. Braga

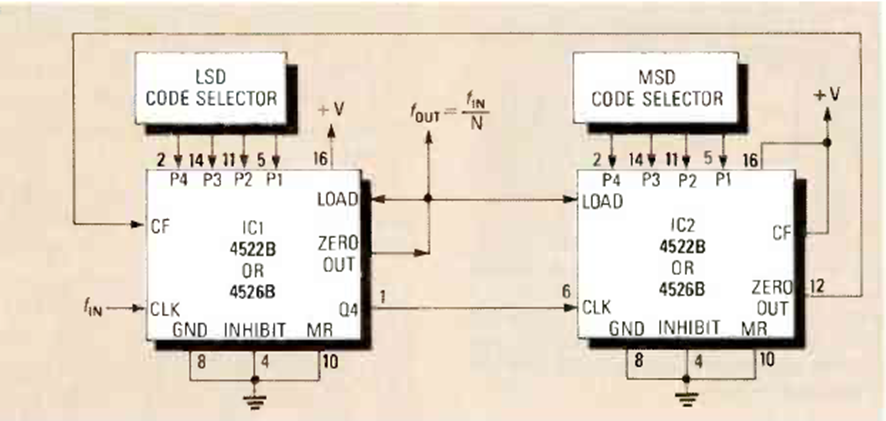

This two-digit (up to 99) circuit divides a signal by values ​​programmed by the BCD switches. The circuit comes from a Radio Electronics from February 1989.
