Logic Probe (CB25268E)

Details
Written by: Newton C. Braga

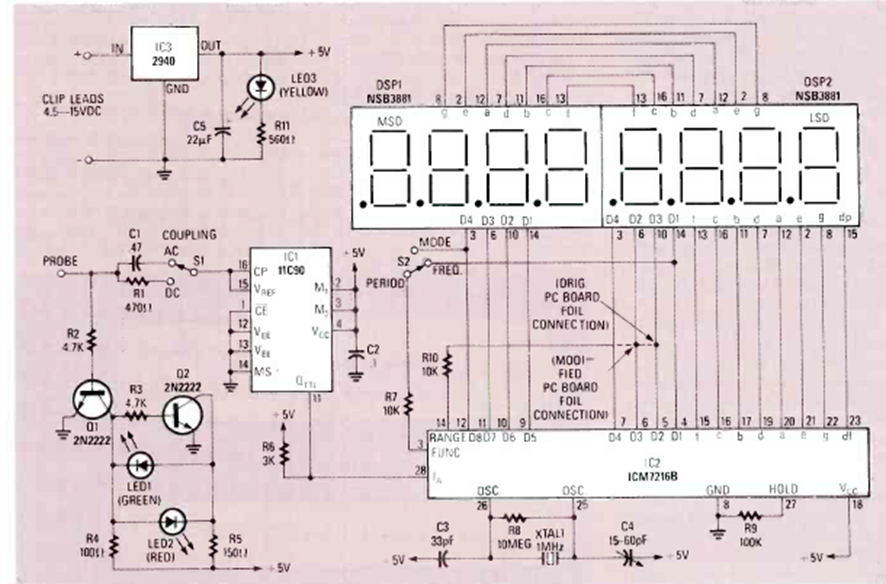

Found in the February 1990 Radio Electronics issue, this sophisticated 100 MHz probe uses a period display module. The circuit has an external power supply.
