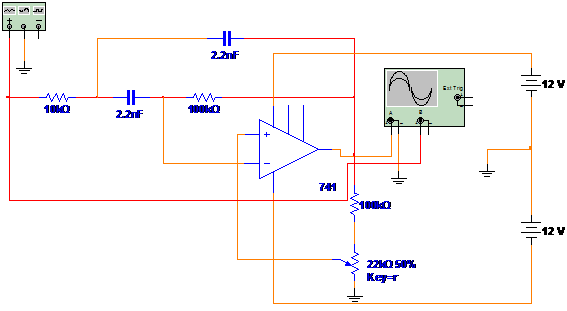

Short square pulses trigger this damped oscillator. The frequency of the damped oscillations is determined by the 2.2 nF capacitors. Adjust the damp factor by the 22k ohms potenctiometer actuatiing in key A. Observe the adjustments for the virtual function generator and the oscilloscope of Multisim Blue.
