15W Amplifier LM378 (CB25314E)

Details
Written by: Newton C. Braga

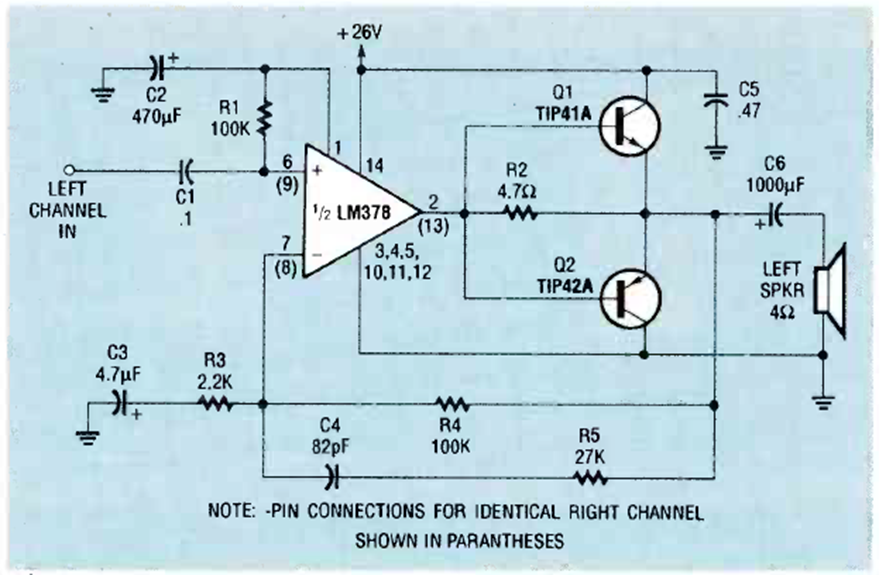

This circuit provides 15W per channel and can operate with a single power supply. The circuit is from a Radio Electronics from April 1990.
