555 Pulse Generator (CB25505E)

Details
Written by: Newton C. Braga

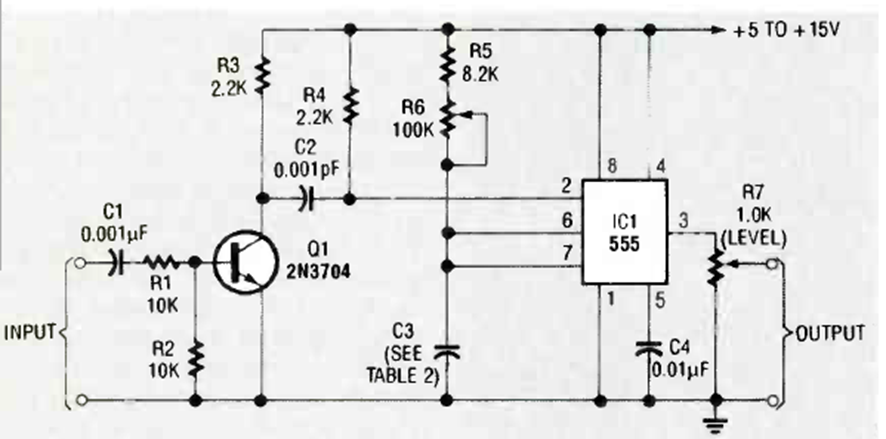

Found in the September 1992 issue of Radio Electronics magazine. This circuit generates pulses that are determined by C3. The circuit has output pulse intensity and timing adjusted by R6.
