Automatic Shutdown Circuit (CB25862E)

Details
Written by: Newton C. Braga

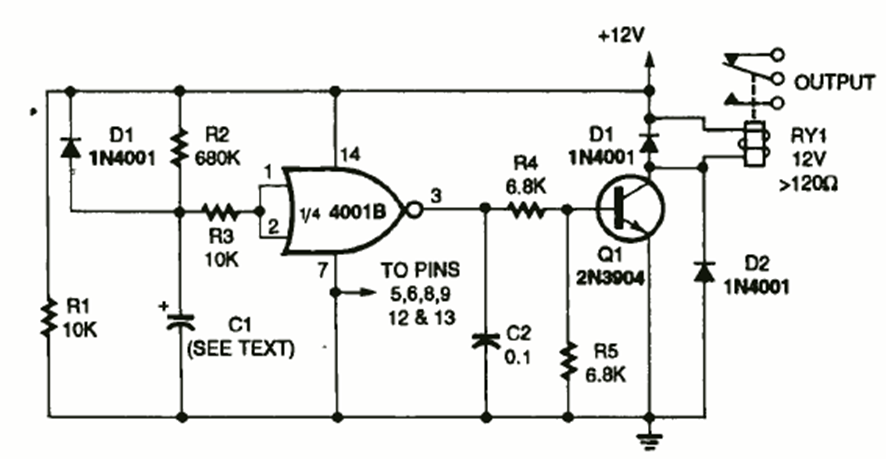

This circuit turns off after a time given by capacitor C1. This component can have from 1 to 1,000 uF depending on the desired time. The circuit is from an Electronics Now from June 1995.
