Triac Switch (CB25869E)

Details
Written by: Newton C. Braga

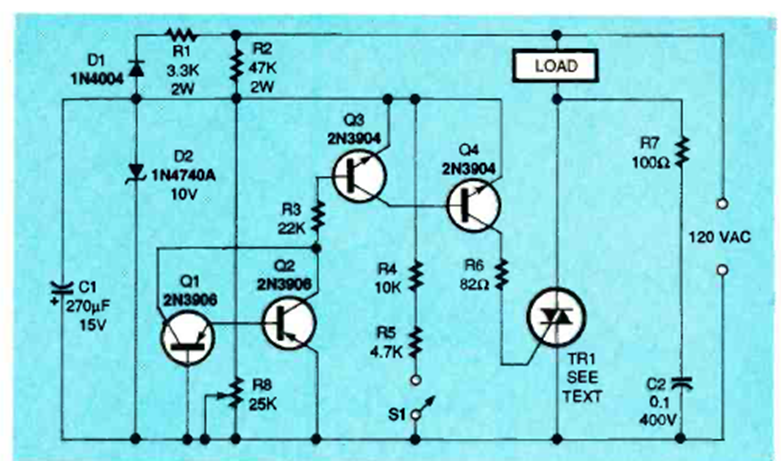

This triac synchronized circuit was found in the July 1995 issue of Electronics Now magazine. The triac must be equipped with a heat sink depending on its power rating.
