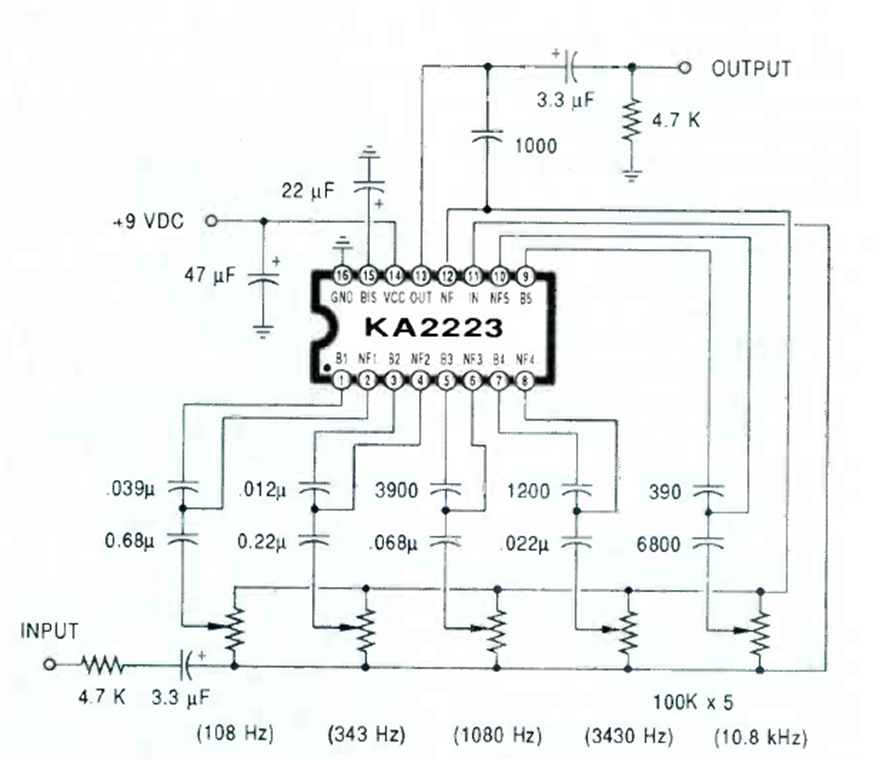

Graphic equalizer KA2223 (CB25943E)

This circuit was found in a Radio Electronics from April 1990. The circuit has 5 equalization bands given by the capacitors used.
