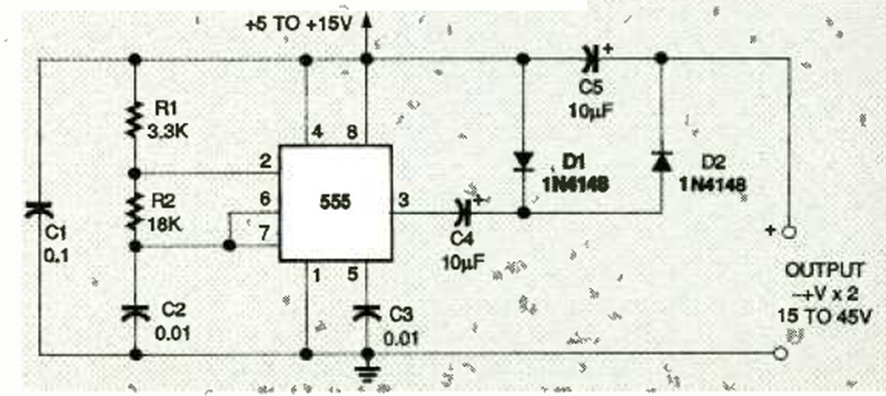

555 Voltage Tripler (CB25836E)

Details
Written by: Newton C. Braga



Found in the April 1995 issue of Electronics Now magazine, this circuit provides an output voltage that is three times the supply voltage. The current is very low.
